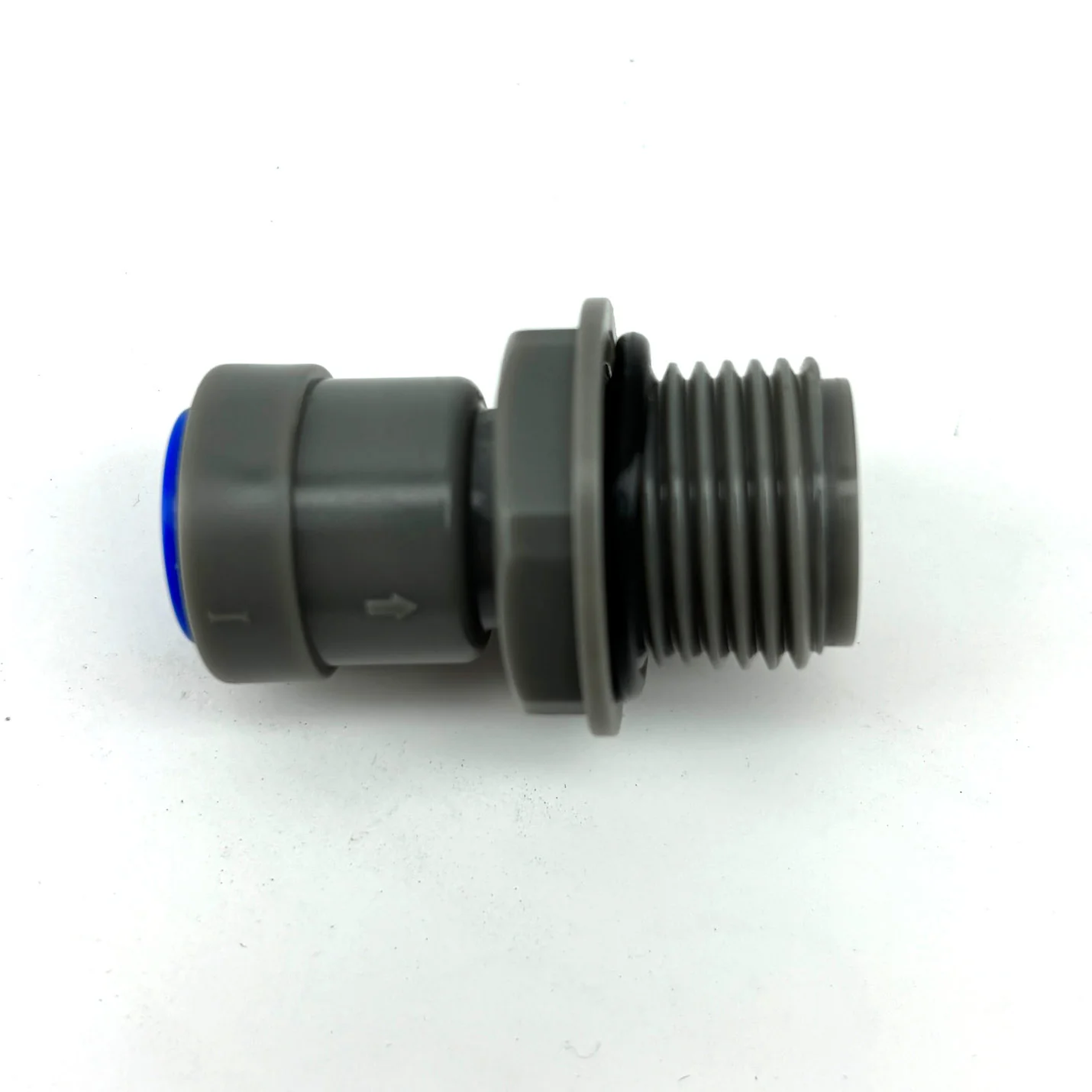

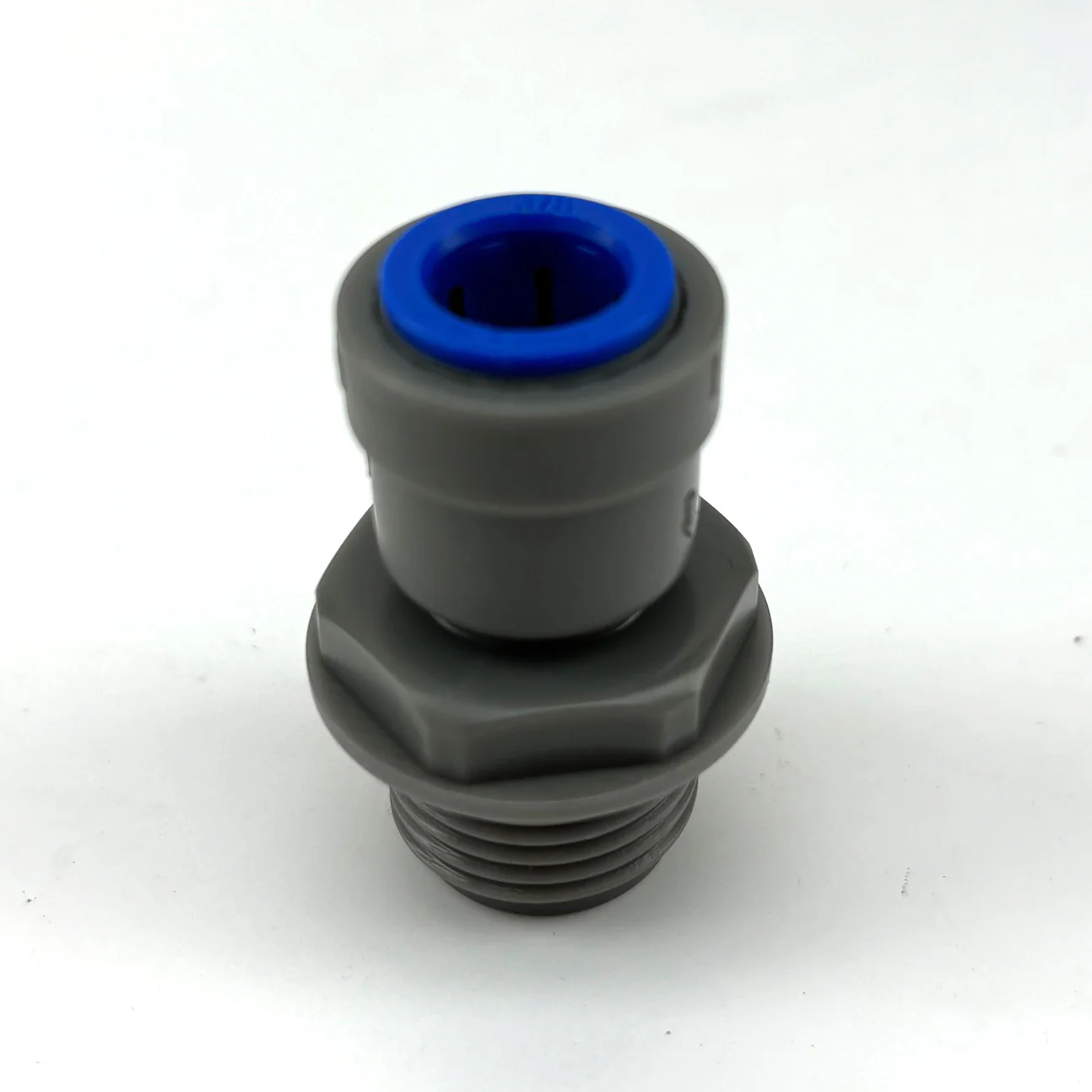

This piece is suitable for our EVABarrier Beer & Gas hosing in 9.5mm (3/8") OD line to 6.5mm (1/4") OD to male 1/2" BSP Thread. Perfect for attaching to our copper counter flow chiller and use your own camlock fitting / hose attachments.

Compatible with the following hosing:
KL06248 - EVABarrier 6.3mm ID x 9.5mm OD x 12m Roll - Double Wall EVA
KL42772 - Black Lightshield EVABarrier 6.3mm ID x 9.5mm OD x 12m Roll - Double Wall EVA

Generation 2 duotight
- Colour Coded Collets (6.35mm [1/4"] = Green ~ 8mm [5/16] = Black ~ 9.5mm [3/8] = Blue)
- Burst pressure is over 300psi @ 25°C
- Material Polyketone (POK) no longer Acetal (like John Guest Fittings)
- Higher Chemical & UV Resistance
- Excellent Gas Barrier Properties with EPDM + Silicone Seals
- Superior Performance in Cold Temperatures
- Easier to fit with Gauge depth indicators >| |<

Looking for high quaility push in fittings that will seal tight? duotight are the push in fitting with superior sealing capacity due to the double o-ring sealing design.

Why do we use Double O-rings?
The secret to our superior sealing performance is not just the fact that we use high quality EPDM and a Silicone O-Ring.

Why two different materials?
EPDM has a high gas and chemical resistance, but when chilled it can shrink slightly. Silicone O-Rings are also very chemical resitant but perform far better under sub-zero conditions not losing their shape.
By having the best of both worlds we're making sure there is twice as much sealing surface compared to other push in fittings on the market with just one.
This makes our fittings even more reliable and reduces the chance of a leak significantly.

The double o-ring system also means that we can bend the hose with much tighter radius without causing leaking issues. This typically can be an issue with other fittings. This combination of factors makes duotight fittings the most reliable push fit fittings on the market.

No clamps necessary!
We do recommend cutting your hosing straight, not on an angle, to ensure the line has a complete seal. To remove the fitting simply push in the collet and the hose can be removed.

FAQ
What is EPDM?
EPDM = Ethylene Propylene Rubber which has excellent chemical resistance including being compatible with ozone, oils, wide variety of alkaline and acid compounds, water, alcohol, ketone and beverages.

EPDM is also resistant to aging, weather and will not perish easily like other rubber compounds. When compared with silicone and vinyl EPDM has better gas transmission rates, better wear resistance, is BPA free and is the number one choice for many long lasting food grade applications.

1/2" Threaded duotight Fittings

duotight - 9.5mm (3/8”) Female x 1/2 Male Thread Bulkhead (suits TempTwister)

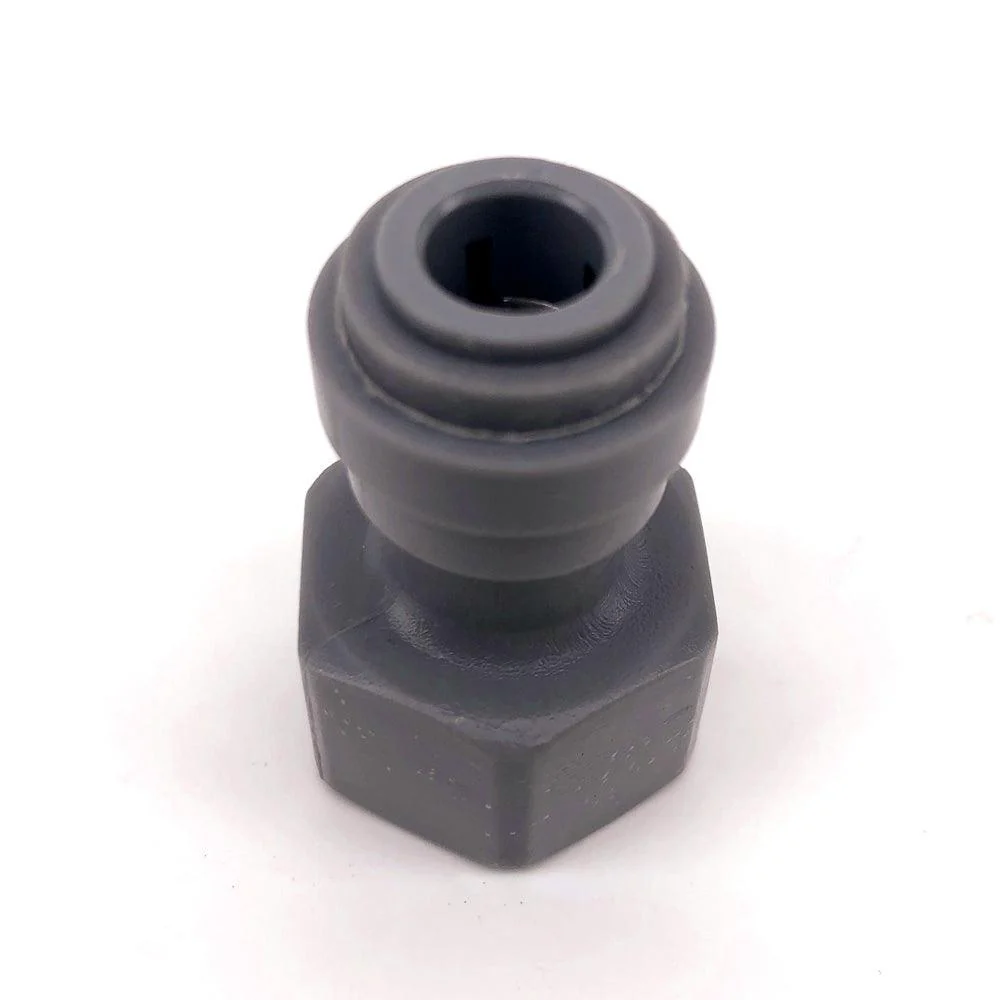

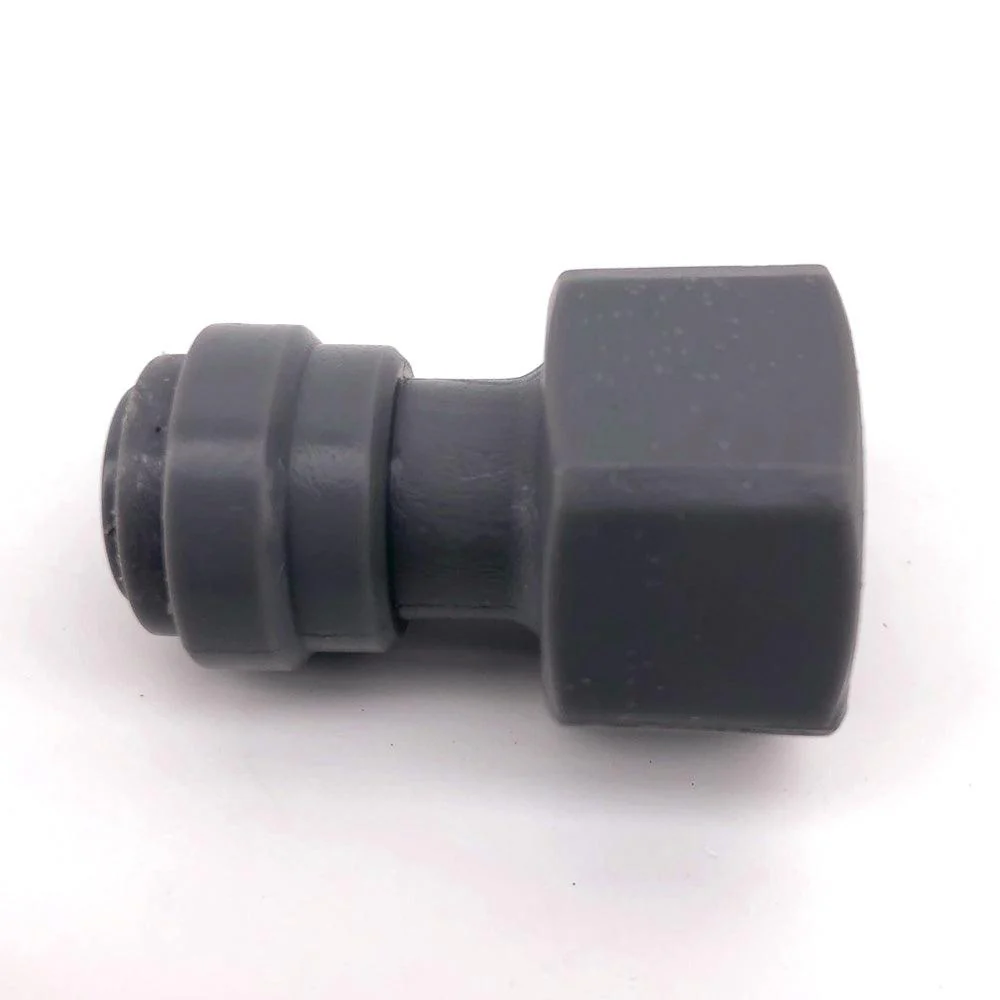

monotight - 8mm (5/16”) x 1/2” Female Thread

duotight - 9.5mm (3/8”) Female x 1/2 Male Thread

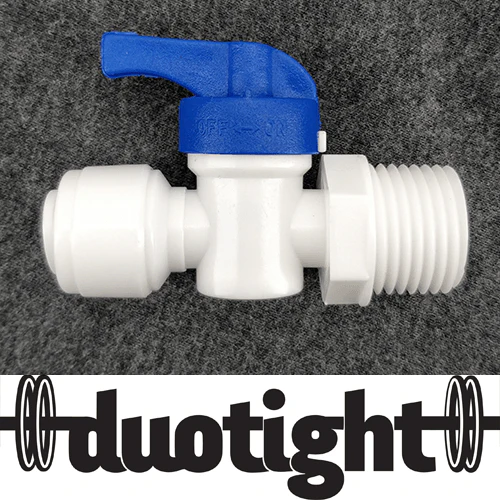

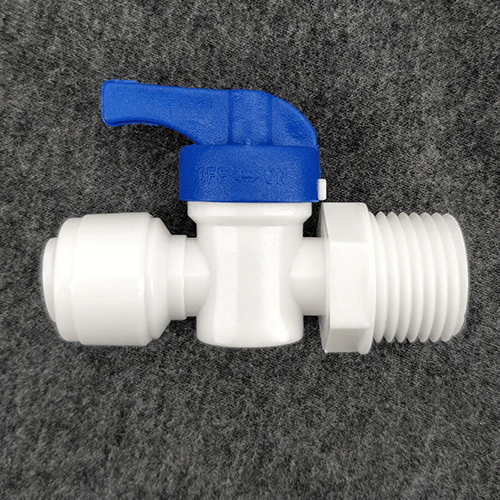

duotight - 9.5mm (3/8”) Female x 1/2'' Male Thread Ball Valve

monotight – 6.35mm (¼') Female x ½' Female Thread

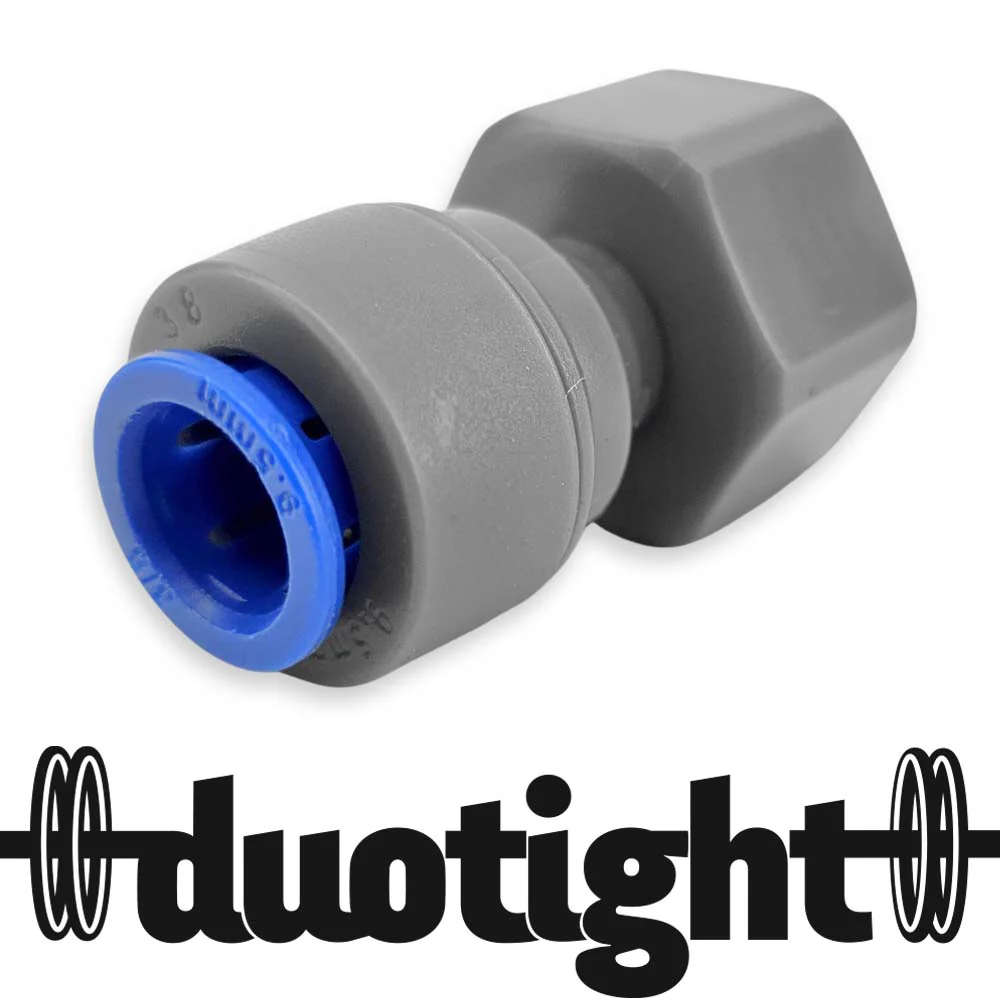

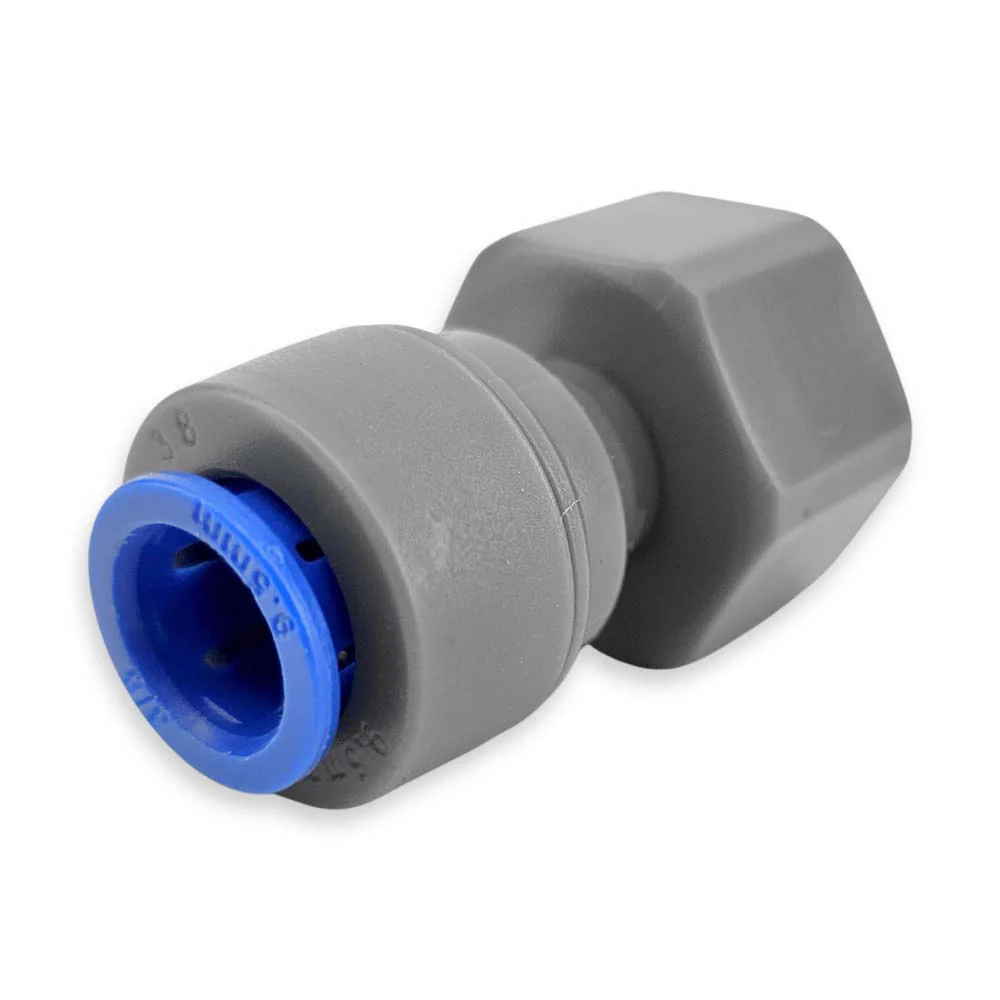

duotight - 9.5mm (3/8) Female x 1/2 Female Thread
